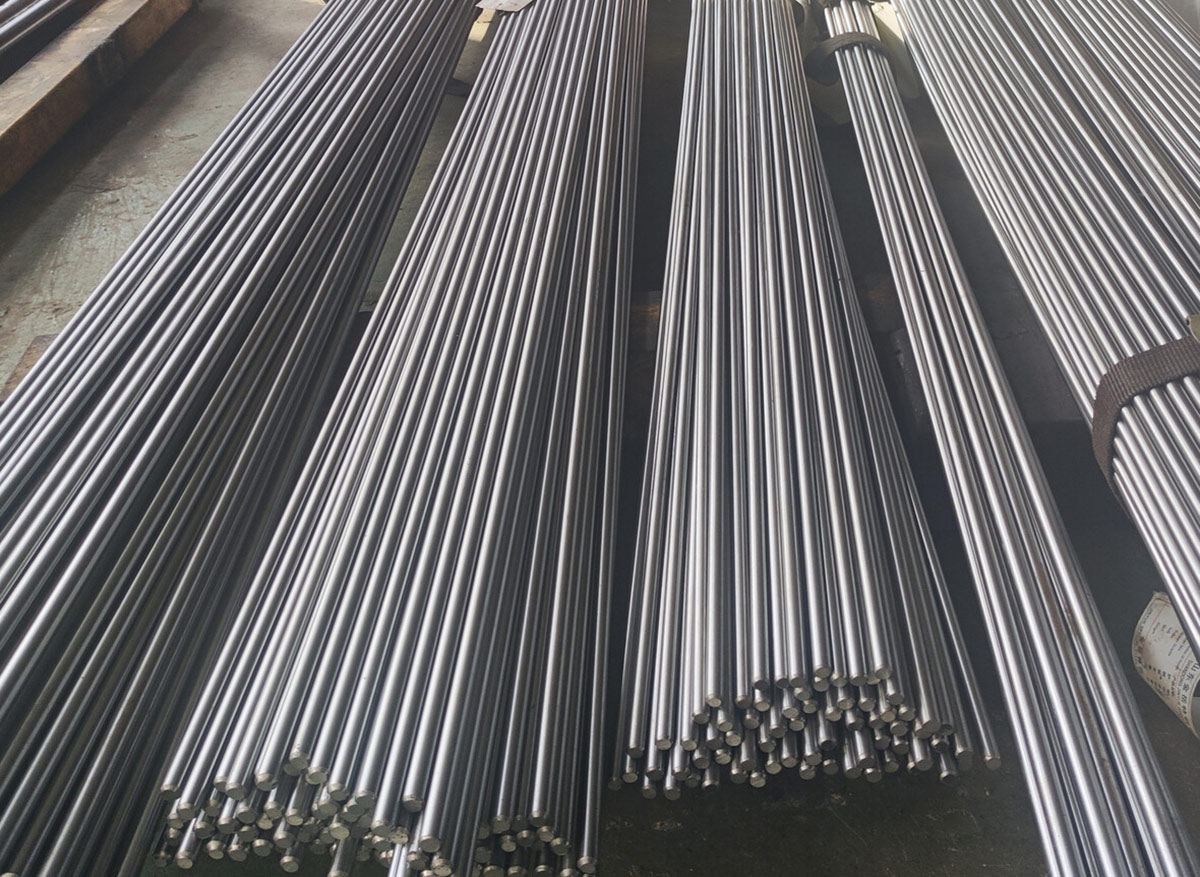

Tempered and Polished Steel Rods
High Precision: Ensures consistent and accurate tolerances for superior quality and performance.
Smooth Surface: Provides a smooth and glossy surface finish, enhancing both the product's appearance and functionality.
Substantial Material Savings: With tight tolerances and a polished surface, material waste is minimized. Compared to traditional lathe machining, which consumes more raw materials, this process offers significant savings in both materials and time—particularly valuable when dealing with large quantities of material, leading to notable reductions in overall material costs.
Reduced Processing Time and Equipment Costs: The high precision and excellent surface quality enable direct use in secondary operations such as spraying, sanding, bending, and drilling. This eliminates the need for extensive machining time and reduces the costs associated with additional processing machinery, further optimizing production efficiency and cost savings.
Products Introduction
Tempered and polished steel rod is a metal disk or bar after spheroidal annealing, drawing, straightening, chamfering, cutting, tempering, polishing and a series of processing technology made of precision, straightness, roundness, strength and so on to meet the corresponding requirements of the bar, is the production of high-precision shafts, rods, turned parts, standard parts and other mechanical transmission components required for the important materials.
Generally according to the end use and the production of parts on the precision grinding rod size accuracy, surface quality, straightness, mechanical properties of the material and other requirements to determine the required metal material and processing technology.
Features
1. High precision: ensure accurate and uniform tolerances.
2. Smooth surface: the surface is smooth and bright.
3. Material substantial savings: small tolerances, bright surface, so that the loss of raw materials is minimal, relative to the use of traditional lathe machining cutting materials consumed, the savings in materials and time is very considerable, especially when the amount of material, material cost savings is more significant.
4. Processing time and processing machinery savings: due to accurate precision, good surface condition, can be used directly, such as spraying, sanding, bending, drilling, eliminating the need for a large number of machining time and save the cost of configuring processing machinery.
Classifications
According to the material, the tempered and polished bar can be divided into carbon steel and stainless steel, copper and related alloys, pure titanium and titanium alloy, other metals and alloys and so on.
Specifications
Commonly used materials | Commonly used delivery status | Common technical indicators |
Q235 45# 40Cr 42CrMo GCr15 2Cr13 4Cr13 17-4 60Si2Mn etc. | Φ8~40mmcold-drawn bar, cold-drawn strip Φ8~40mmbare round (peeling processing) Φ8~40mmtempered round Φ8~40mm fine-drawing tempered bar Φ8~40mmtempered grinding barΦ8~40mmtempered polished bar Φ8~40mm tempered grinding and polishing rods Φ8~40mmchrome plated hard shaft Φ8~40mmchrome plated flexible shaft The rest of the sizes can be customized. | Tolerance of the diameter of peeled or cold-drawn material≤0.05mm Grinding or polishing material diameter tolerance≤0.02mm Straightness≤0.2mm/m Fineness Ra0.4~0.8 Length3m/3.03m/2.5m/customizable Hardness can be customized according to requirements Packing: woven bag, hollow board, geotextile, wooden box, etc.
|
Applications
The tempered and polished steel rods are mainly used in CNC machine tools, automobiles, medical equipment, printing instruments, power tools and hardware electromechanical, engineering machinery, railroad locomotives, home appliances and other equipment with shafts, worm gear, connecting rods, precision bearings, transmission rods, silk rod, standard parts, turned parts and other mechanical transmission parts manufacturing industry.
